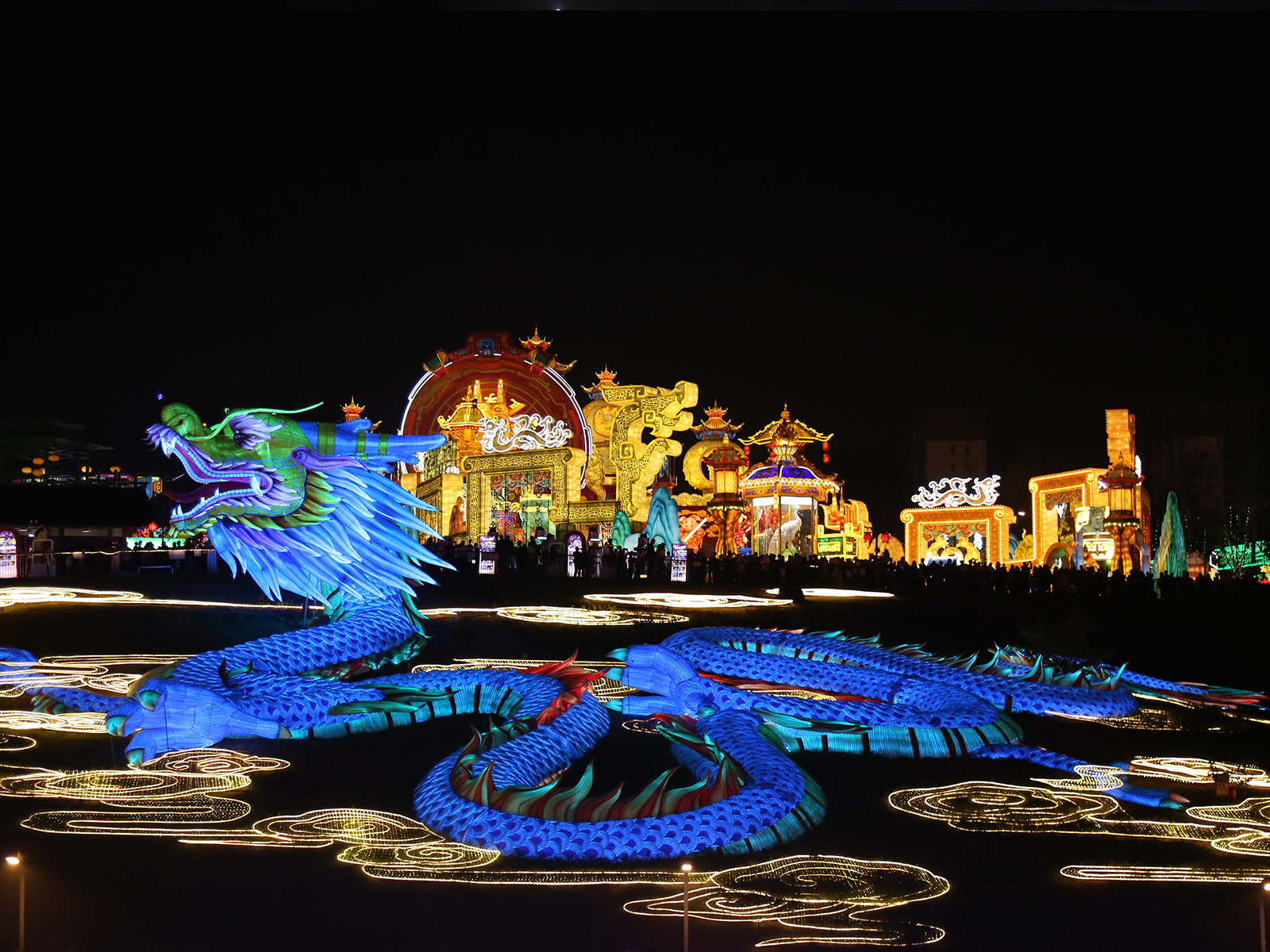

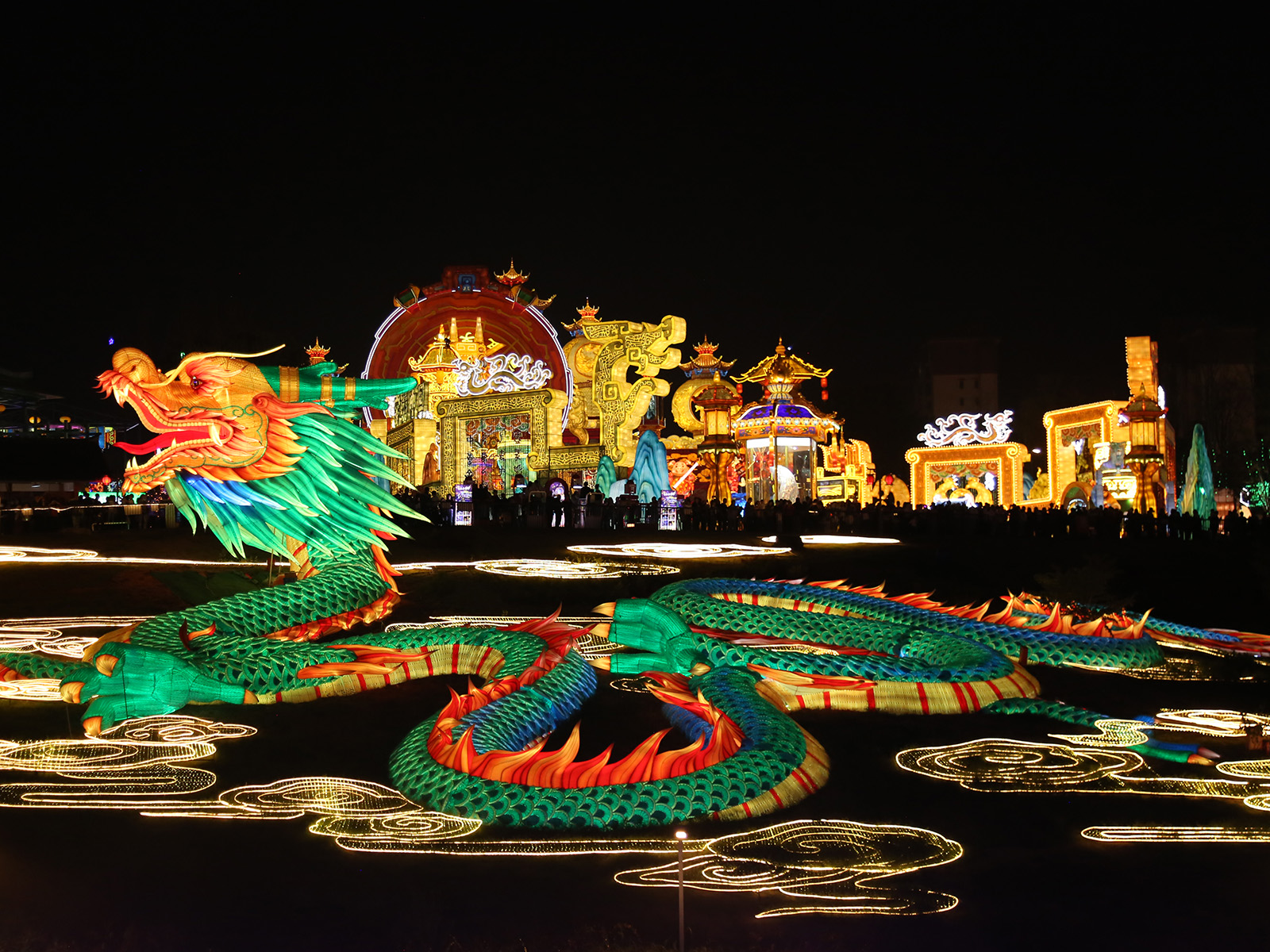

Zigong, China — February 2024 — At the 30th Zigong International Dinosaur Lantern Festival, a spectacular 202.4-meter dragon lantern group titled “Intangible Cultural Heritage Chinese Dragon” (非遗中国龙) captivated global audiences and set a new standard for eco-friendly large-scale lantern installations. Created by master artisans from Zigong — the world-renowned birthplace of Chinese lantern art — this monumental piece represents a groundbreaking fusion of traditional intangible cultural heritage techniques, innovative material science, and modern lighting technology.
A Dragon of Unprecedented Scale
The “Intangible Cultural Heritage Chinese Dragon” is not merely a lantern — it is an engineering marvel and a testament to sustainable artistic innovation:
| Specification | Detail |
|---|---|
| Total Length | 202.4 meters |
| Dragon Head Height | 9 meters |
| Dragon Head Diameter | 4 meters |
| Fire Orb Diameter | 4 meters |
| Flame Height | 8 meters |
| Total Weight | Nearly 10 tons |
| Segments | 17 sections (16 body segments + 1 head) |
| Primary Material | 200,000 recycled plastic bottles |
| Dragon Scales | 3,000+ individually crafted panels |
| Steel Components | 500+ pieces |
| LED Strip Length | 3,800 meters |
| Light Lifespan | 50,000 hours |
| Working Temperature Range | -40°C to 70°C |
Revolutionary Eco-Material Innovation
The most striking feature of this installation is its primary construction material: 200,000 recycled plastic bottles. This bold choice transforms waste into wonder, embodying the festival’s commitment to green, low-carbon, and environmentally conscious exhibition practices.
The Technical Breakthrough: No Water Required
Traditionally, plastic bottles used in lantern construction required filling with water to achieve proper light diffusion and structural stability. The “Intangible Cultural Heritage Chinese Dragon” breaks from this convention through a major technical innovation:
The bottles remain empty — no water is added inside.
Instead, the creative team developed a high-transparency, high-adhesion bottle coloring agent specifically formulated for lantern applications. After hundreds of experiments and optimizations, they perfected a rapid-dip dyeing process that achieves a stunning glass-like aesthetic while maintaining exceptional light transmission properties.
This breakthrough offers multiple advantages:
- Reduced weight — Empty bottles significantly decrease the overall structural load
- Enhanced durability — Eliminates water-related issues such as leakage, freezing, or algae growth
- Superior light effects — The specialized coloring agent creates brilliant, saturated colors with excellent light diffusion
- Streamlined production — Faster processing without the need for water filling and sealing
Material Processing at Scale
The production of the dragon’s “scales” required extraordinary effort:
- 15 skilled workers spent 20 consecutive days hand-dyeing all 200,000 bottles
- Each bottle was individually treated to ensure consistent color quality and light transmission
- The bottles were then hand-tied and bonded using traditional Zigong lantern-making techniques
Design Heritage: Inspired by Imperial Majesty
The dragon’s design draws inspiration from the Nine-Dragon Wall (九龙壁) at the Forbidden City in Beijing — one of China’s most iconic dragon representations. The design team, led by chief planner Zhong Yi (钟逸), conducted extensive research into traditional Chinese dragon culture before selecting the coiled dragon motif from this imperial masterpiece.
To faithfully represent the dragon’s majestic presence while accommodating the unique properties of plastic bottle materials, the artisans combined multiple traditional techniques:
- Special binding techniques — Traditional Zigong lantern knotting and lashing methods
- Inlay techniques — Precision placement of colored bottle segments
- Adhesion techniques — Specialized bonding for durable outdoor installation
- Silk-wrapping and dimensional pasting — Used specifically for the dragon head to achieve complex three-dimensional curves and rich layering
The Dragon Head Challenge
The dragon head posed a particular challenge due to its complex three-dimensional geometric surfaces and rich layering. The solution combined plastic bottle construction with silk-wrapping and dimensional pasting techniques, resulting in a more vivid and lifelike appearance.
Illumination Engineering: Day and Night Visual Impact
The lighting system represents another major technical achievement. The installation employs waterproof, full-color, multi-variable LED fantasy light strips with exceptional performance characteristics:
- High illumination intensity with excellent light penetration
- Rich, uniform, highly saturated colors
- Smooth color-changing effects across the entire dragon body
Synchronized Control Challenge
Achieving simultaneous color changes across 17 segments — including a 9-meter-high dragon head — presented a significant control engineering challenge. The solution:
- 15 independent control systems strategically positioned throughout the installation
- 5 days and nights of continuous testing by technical specialists to calibrate synchronization
- Result: A dragon that appears to breathe, flow, and pulse with life through perfectly coordinated chromatic transitions
Construction: 45 Days, 80+ Artisans
| Phase | Details |
|---|---|
| Total Construction Period | 45 days |
| Total Workforce | 80+ workers and technicians |
| Bottle Dyeing | 15 workers × 20 days |
| Structural Engineering | 500+ steel components |
| Light System Testing | 5 days continuous |
| On-site Assembly | 17 prefabricated sections |
The structural engineering team addressed the challenges of giant-scale pattern-making and safe load-bearing through overall structural optimization design. The dragon was fabricated in 17 separate segments off-site, then transported and assembled on location at the No. 2 Square lawn area.
A New Chapter in Sustainable Lantern Art
The “Intangible Cultural Heritage Chinese Dragon” exemplifies Zigong’s evolving approach to lantern festival production:
- Waste-to-Art Transformation — 200,000 discarded bottles given new life as cultural artwork
- Energy Efficiency — LED technology reduces power consumption by 38% compared to previous festivals
- Material Innovation — New coloring agents and processing techniques expand creative possibilities
- Heritage Preservation — Traditional intangible cultural heritage techniques applied to contemporary materials
Global Recognition
Since its debut, the “Intangible Cultural Heritage Chinese Dragon” has achieved remarkable media coverage:
- National Media: People’s Daily, CCTV News, China News Service, International Online
- Regional Media: Sichuan Daily, Sichuan Online, Cover News
- Social Platforms: Extensive sharing across WeChat, Douyin (TikTok), Kuaishou, Bilibili
The installation has become one of the most photographed and shared attractions in the history of the Zigong Lantern Festival.
About Zigong Lantern Festival
With a history spanning over 60 years, the Zigong International Dinosaur Lantern Festival stands as one of the world’s premier lantern art events. Each year, millions of visitors experience the magic of Zigong’s master artisans, who continue to push the boundaries of scale, technology, and artistic expression in illuminated installations.
